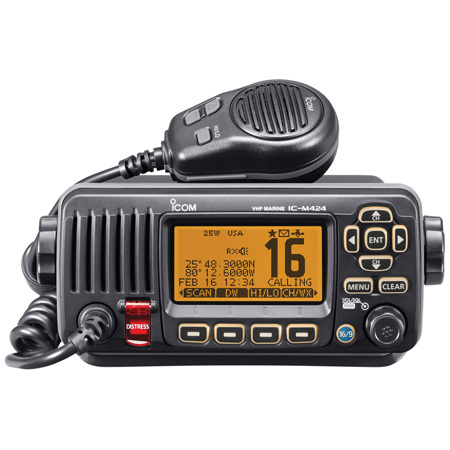

ICOM IC-M424
ICOM IC-M424 ICOM IC-M424 ICOM IC-M424 ICOM IC-M424 ICOM IC-M424 ICOM IC-M424 ICOM IC-M424 ICOM IC-M424 ICOM IC-M424 ICOM IC-M424

ICOM IC-M424

75000 INR/Piece

Product Details:

  • Product Type Marine Base Station Radio
  • Frequency Range (Hz) 156-163 Megahertz (MHZ)
  • Storage Channel 20
  • Talk Range Marine Radio
  • Interface 02
  • Power 25 Watt (w)
  • Current 0.495 Ohm (ohm)
  • Supply Ability : 5000 Piece Per Day
  • Click to view more
X

Price And Quantity

  • 02 Piece
  • 75000 INR/Piece
  • 69800.00 - 71850.00 INR/Piece

Product Specifications

  • Marine Radio
  • Marine Base Station Radio
  • 25 Watt (w)
  • 20
  • 180 × 82 × 119.9 mm Millimeter (mm)
  • 02
  • 0.495 Ohm (ohm)
  • 1.4 Kilograms (kg)
  • Marine Radio
  • 156-163 Megahertz (MHZ)

Trade Information

  • SOUTH DELHI
  • Paypal, Western Union, Cheque, Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD), Cash Against Delivery (CAD)
  • 5000 Piece Per Day
  • 10 Days
  • Yes
  • Free samples are available
  • STD Box.
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • ISO 9001

Product Description

MA-500TR AIS transponder compatible
AquaQuakeTM draining function
IPX7 submersible protection (1m depth for 30 minutes)
Weather channels with alert function
Dual/tri-watch function for monitoring Ch.16 and/or call channel
Priority and normal scan
Built-in attenuator for local communication
Black and super white versions available


Specifications

Frequency Range
TX
Rx

156.025–157.425 MHz
156.050–163.275 MHz
Usable channels INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM)
16KOG2B (DSC)
Power supply requirement 13.8V DC ±15%
Current drain (at 13.8V DC)
TX 25W output
Rx AF max. (RX SP ON)

5.5A
5A (External speaker)

Operating temperature range

-20°C to +60°C; -4°F to +140°F

Antenna Impedance 50O (SO-239)
Dimensions (W×H×D)
(Projections not included)
180 × 82 × 119.9 mm;
7.09 × 3.23 × 4.72 in
Weight (approx.) 1.4kg; 3.09lb
NMEA in/out formats RMC, GGA, GNS, GLL, DSC, DSE
Transmitter
Output power (at 13.8V DC)

25W, 1W

Max. frequency deviation ± 5 kHz
Frequency stability ±10ppm (-20°C to +60°C)
Spurious emissions Less than –70dBc
Residual modulation More than 40dB
Adjacent channel power More than 70dB
Audio frequency response +1dB to –3dB of 6dB octave
from 300Hz to 2500Hz
Receiver
Intermediate frequency 1st 21.7MHz, 2nd 450kHz
Sensitivity (at 12dB SINAD) 0.22µV typical
Squelch sensitivity Less than 0.22µV
Adjacent Channel Selectivity More than 70dB
Spurious response More than 70dB
Inter-modulation More than 70dB
Hum and noise ratio More than 40dB
Audio output power
External speaker
(at 10% distortion, 4 ? load)
10W typical

Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.

Supplied Accessories

  • Hand microphone, HM-196B/SW
  • DC power cable
  • Mounting bracket kit
