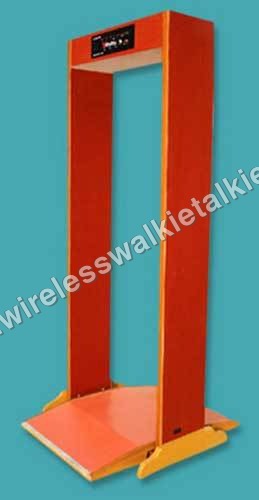

Door Frame Metal Detector

Product Description

Stark DFMD

Our Metscan Delux DFMD Range of walk through metal detectors are designed to detect both ferrous & non ferrous metals concealed on a person in any possible manner including metals concealed in ferrite containers.

The search coil & control modules are housed in aesthetically designed door frames which easily merge in to any aristocratic/sophisticated dcor.

Components of the highest quality have been employed throughout the process of assembly.

Plug in card system has been employed for ease of servicing & minimum down-time.

Our metal detectors are backed by a team of topnotch service technicians specially trained for quick service ever required throughout the country.

Salient Features:

• High 'Q' tuned resonant circuit.
• Detects all ferrous and Non-ferrous metals.
• 9 Levels to select the Low, Medium and High Sensitivity.
• Audio Alarm and Visual indicator by Bar Graph.
• Walk/Stop Indicator.
• Control knob for initial setting with respect to immediate vicinity and environmental conditions.

Physical Parameters

• Control Unit - Built in
• Ramp - Covered with synthetic carpet for long life.
• Passage - 1950mm x 750mm
• Overall Dimension - 2100mm x 825mm x 300mm

Technical Parameters

• Principal - Eddy Current Loss
• Detection - All ferrous & non ferrous metals.
• Power Source - Operatable on 230 Volts AC+15%, 50Hz,50V
• Sensitivity - Low - Objects like Grenades.
• Medium - Objects like Pistol & Small Weapons.
• High - Objects like Watches, Keys & Coins etc.
